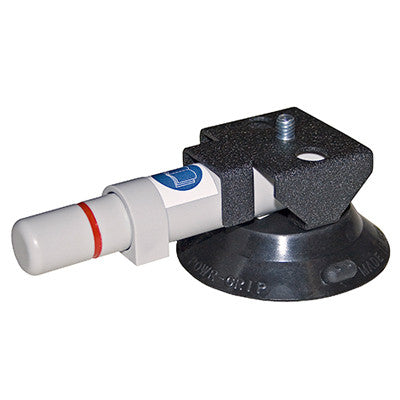

3" Vacuum Grips, Threaded Studs, capacity 15 lbs each
(one pair included)



$74.00
3" Vacuum Grips, Threaded Studs, capacity 15 lbs each</br>(one pair included)

"Must have in any glovebox!"

You name it, vacuum grips can help. Attach all types of items for temporary use. Reduces the need to bolt items to the glovebox permanently.  Place a vice in a spot temporarily and then move it out of the way when you are done using it. Hang shelving, magnetic bars for tools, magnifiers, lights, in and out of the glovebox.  Excellent for window changes.



Features:

  • Metal accessory mount with 1/4-20 thread x 3/8" length stud for attaching equipment
  • Provides a reliable, temporary vacuum mount, without drilling holes
  • Rubber vacuum pad will not mark or damage most surfaces
  • Attaches to smooth, nonporous surfaces, whether flat or curved
  • Red-line indicator warns user of any significant vacuum loss
  • Check valve allows repumping without loss of remaining vacuum
  • Lift tabs on pad edges permit instant release
  • Supplied with pad protector

Specifications:

  • Vacuum Pad: Concave, 3" [8 cm] diameter
  • Minimum Radius for Curved Mounting Surface: 4" [102 mm]
  • Height to Mounting Platform (does not include stud): 1-27/64" [36 mm] on flat surfaces; 1-11/16" [43 mm] on surfaces with maximum curvature
  • Load Capacity: 15 lbs [7 kg] per vacuum cup
  • Uses compressed air supply to handle flat glass quickly and efficiently
  • Excellent for quick pick and place applications with lighter loads
  • Ideal for loading and unloading manufacturing equipment
